ANR500-1T12V/24V/36V/48V/60V/72V/84V/120VDC 500A rau sivTsheb laij teb1NO+ 1NCSib cuagSPDTAOKAI DC Contactor
Cov movies chev voltage ntawm ANR500-1Tcan varied ntawm 12VDC rau 120VDC yuav tsum tau ua. Cov kawm qib thoob ntiaj teb kev tiv thaiv yog IP56. Fais txoj hauj lwm ntawm ANR500-1T 20,000 txog haujlwm thiab tus neeg kho tshuab life expectancy haujlwm txog 300,000. Cov plahaum hom yog Ⅲ. Lub mounting orientation yog tsawg random, uas yuav ntsug los yog kab rov tav. Thaum ntsug, muaj mob loj mounted saum kauj los ua ke.
Peb cov neeg mam tau txais ntawv ntawm yam khoom thiab wehas teev tus txheej txheem kev zoo ntawm contactors, ib yam dab tsi uas lwm tus yog siv tau rau emulate. Peb muaj kev ISO9001:2000 thiab txawj ntau muaj ib txoj kev txhim kho continual ethos.
| Hom: AK/AOKAI Lub npe: DC Contactor Qhov qauv: ANR500-1T Cov movies chev Voltage: DC12V/24V/36V/48V/60V/72V/84V/120Vthiab lwm yam.Fais fab chevNoj: ≤38.0W Nyob tam sim no: 500A Lub cev loj: 67.7 * 84.5 * 117(hli) Luj: txog ≤750g |
|
SPECIFICATION
| Chev nyob Voltage | DC12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V thiab lwm yam. |
Lub ntsiab Circuit Court nyob tam sim no (A) | 500A |
Lub ntsiab Circuit Court cuag Voltage nco (Load: 100A) | ≤80mV |
Nyob rau hauv ℃ (20±5), nws txias Pull-in Voltage | ≤70% |
Nyob rau hauv ℃ (20±5), nws txias tso tseg Voltage | ≥5%, ≤40% |
Fluctuation siv tau ntau yam ntawm kauj Voltage | ±20% |
Pull-in sij hawm (N/O neeg mus kaw) | ≤30ms |
Tseg sijhawm (N/O neeg qhib) | ≤20ms |
Max tus Disconnecting lub sij hawm uas muaj mob | ≤5ms |
Rwb thaiv tsev kuj | ≥50MΩ |
Lub zog dielectric | 50Hz / 60Hz 1000VAC / 1min |
Tamsis no tshaj | ≤7Ie, ≤1s |
Chev zog noj (W) | ≤38.0W |
Lub neej hluav taws xob | lub sij hawm 20,000 |
Txhua yam lub neej | 300 phav npaug |
Ua hauj lwm hom | Nruam |
Hu rau daim ntawv | 1 tsis thiab 1 NC |
Hu rau khoom | AgCdO / AgCuO |
Hu rau ntu nyob Load (yeem yam) | 2A/48VDC, 5A/24VDC |
Txuj kev | GB14048.4-2010 |
CHAW PAB
Altitude | ≤2Km | Kub Ambient | -25~+55℃ |
Qib thoob ntiaj teb kev tiv thaiv | IP50 | Hom plahaum | III |
Nruab ib txoj kev | Yam | Kev co | 2.5g (5 ~ 50) Hz |
Tej yam | 50g, 11ms (Half-Sine yoj) | ||
PLAHAUMDAIM DUAB
DAIM DUAB PLAHAUM
Khoom Diam duab yeeb yam

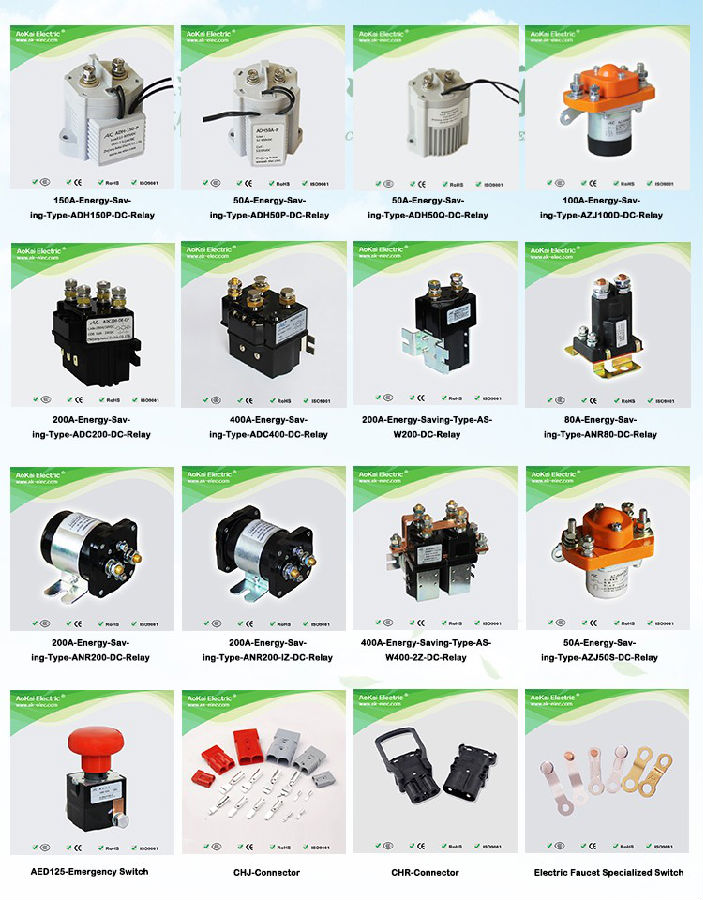

Kub muag khoom
