Hauj lwm yam khoom

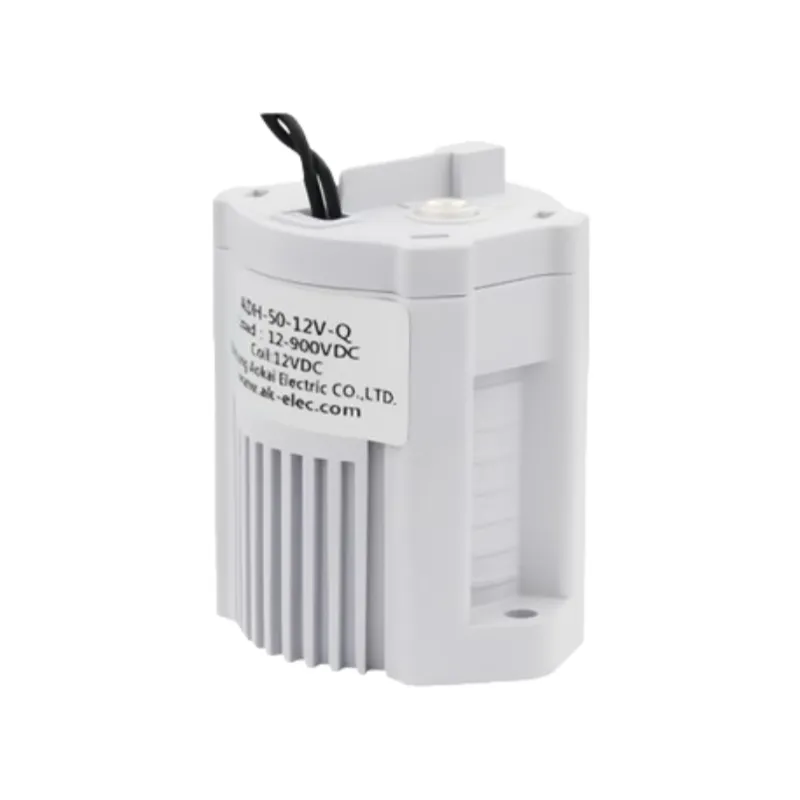

ADH5012VDC/24VDC50A Load 12-900VDC txheem yam 1NO tiv tauj rau HV fais fab mov System AOKAI siab Voltage DC Contactor
ADH50 yam DC contactor lug siv roj teeb them, accumulator, cov cim zog cua ua luaj rau. Chev tam sim no yog 50A, koj yuav xaiv 12V DC los yog 24V DC thaum koj muab ib qho kev txiav txim. ADH50contactor ishigh voltage mus. Nws yuav loseits hloov thaum nyob hauv lub neej puas hom kev ua. Vim li no, thov koj tsis txhob siv nws thaum muaj tus mob no tsis haum lub contactors. Thov hloov tus contactors hauv lub sij hawm thaum lawv pab lifes muaj tau surpassed thaum kab txhaum. Daim duab Circuit Court yuav tsum tsim kom thiaj li hloov li ntawm 1 vib nas this.
Raws li tus ISO9001 lwm txheej txheem, peb lub zoo tswj lawv, uas yog cov realization rau txoj kev ofproducingeffective tswj rau cov neeg haveestablished.
Peb cov khoom uas tau kis tus certificationsof EU "CB", "CE", "ROHS", "EAC", IES thiab muag ib lotsfor Europe, South America, teb chaws Africa, ciaj uas muag UAE.
| Hom: AK/AOKAI Lub npe: siabVoltage DC Contactor Qauv: ADH50-12V / ADH50-24V Nyob kauj Voltage: DC12V / DC24V Cov movies Load Voltage: DC12-900V Hwj chimNoj: 5.5W/6WUa tauingTawm: M4Sab hauv xov Nyob tam sim no: 50ADimension: 54.7 * 41.8 * 62(hli) Luj: 220g |
|
SPECIFICATION
Hu rau hom | 1 P (hu rau 1NO) | |
Hu ua hauj | ≤0.5 mΩ (50A) | |
Hu mus rau lwm yam Load (kuj) | 50A 500VDC | |
Max. Tam sim no switching | 500A 320VDC (muaj li 1 zaug) | |
Cov movies Voltage | (12-900) VDC | |
Max. Switching muaj hwj chim | 160kW | |
Mas Voltage | Thaum sib cuag chev | 4000VAC |
Thaum muaj mob | 4000VAC | |
Cua ntxi | andgt; 8 hli | |
Creepage nrug | andgt; 8 hli | |
Txhua yam lub neej (sij hawm) | lub sij hawm 1 × 106 | |
Lub neej fais (sij hawm) | lub sij hawm 20,000 | |
Txoj kev qhov hluav taws xob chev | Qhov hluav taws xob hlau | |
Ntsaws qhov hluav taws xob kev | M4 Ntsia thawv sab hauv xov | |
Yuag | Txuj (Q) | 220g |
Packing | Yas ntim | |
Lwm Dimension | Txuj (Q) | 54.7 × 41.8 × 62 hli |
Kev co | 10Hz ~ 500Hz 10G | |
Vaum | 5% ~ 95% RH | |
Ntau yam kub | -40℃~85℃ | |
CHAW PAB
Tus IP qib | IP67 |
Khiav lag luam kub | -40~85℃ |
Khiav lag luam av noo | 5 ~ 95% RH |
LOAD SWITCHING NEEJ NKHAUS
DAIM DUAB PLAHAUM
DAIM DUAB SCHEMATIC
Khoom Diam duab yeeb yam
Kub muag khoom
Ntim andamp; Shipping
Tuam txhab ntxiv
Yam khoom tshiab
Aokai fais yog koj qhov chaw zoo rau tus zoo 24v roj teeb tsheb yam kub voltage fais fab relay dc contactor nrog CE muab ntawv pov thawj. Peb tau muaj ib yam ntawm cov coob xws manufacturers thiab lwm tus neeg nyob hauv Suav teb vim hais tias peb lub tsev lag luam rau xyoo 2008. Txais tos hu peb koom xwm rau cov khoom siv.
Cim npe nrov: 24v roj teeb tsheb yam kub voltage fais fab relay dc contactor, manufacturers Tuam Tshoj, lwm tus neeg, lub hoobkas, CE
