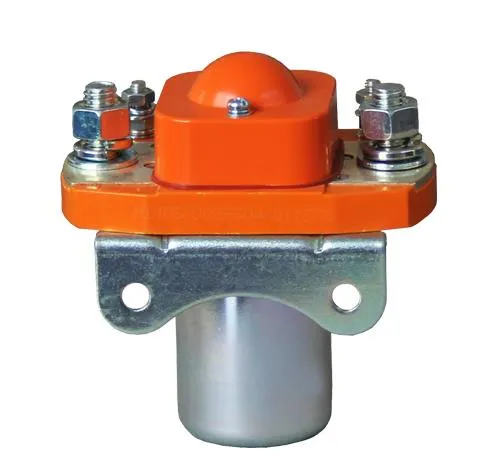

AZJ200S / AZJ100D12V/24V/36V/48V/60V/72V/84V/120VDC 200A sib nqus Contactor siv fais Mounted Crane1NO AOKAI DC Contactor

AZJ200 series muaj ob yam contactor, ib kauj tib AZJ200S, uas yog tsim rau cov ua haujlwm sib quas ntus lawm, ib ob chav coils AZJ200D, uas yog tsim rau cov ua haujlwm nruam. Koj muaj cai xaiv tau yog ib tug ua ntej koj yuav pab. Endurance txog dua loading tam sim no muaj tsawg tshaj li 7Ie. Lub shocking ntawm tib tug taw tes yog 10-200Hz thiab acceleration yog tsis tau muaj 4g. Cov kev co yog 2.5 g, 5-50 Hz.

FAQ:
Q: hauv lub hwj chim zoo li qub lawv, vim li cas peb puas loj npaum cas lub kauj voltage saum lub qho, xws li 24VDC/48VDC nominal?
A: nyob rau lub lawv tej hwj huam zoo li qub, peb yuav noj mus ua nyiaj cov "roj teeb ntau equalization xwb voltage" whereby yog lub suab nominal DC voltage ntawm 24VDC, cov nyiaj them siab tshaj kauj voltage yuav nyob ze 30VDCCO. Yog lub zog nominal voltage ntawm 48VDC ces peb yuav loj npaum cas rau ntau kauj voltage ntawm 60VDC CO. Yog vim li cas qhov no yog rau alleviate twg tej zaum rau kauj ntxov ntxov ib thermal.

Hom: AK/AOKAI
Lub npe: DC Contactor
Qauv: AZJ200S/BZJ200S/MZJ200D

Cov movies Voltage: DC12V/24V/36V/48V/60V/72V/84V/120Vthiab lwm yam.

Nyob tam sim no: 200A

Chev: Ib kauj

Dimension: 85 * 56 * 93(hli)

Luj: txog450g


Hom: AK/AOKAI
Lub npe: DC Contactor
Qauv: AZJ200D/BZJ200D/MZJ200A
Cov movies Voltage: DC12V/24V/36V/48V/60V/72V/84V/120Vthiab lwm yam.
Nyob tam sim no: 200A
Chev: Ob chav chevs
Dimension: 85 * 56 * 93(hli)
Luj: txog450g


SPECIFICATION

Chev nyob Voltage	DC12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V thiab lwm yam.
Lub ntsiab Circuit Court nyob tam sim no (A)	200A
Lub ntsiab Circuit Court cuag Voltage nco (Load: 100A)	≤80mV
Nyob rau hauv ℃ (20±5), nws txias Pull-in Voltage	≤70%
Nyob rau hauv ℃ (20±5), nws txias tso tseg Voltage	≥5%, ≤40%
Fluctuation siv tau ntau yam ntawm kauj Voltage	±20%
Pull-in sij hawm (N/O neeg mus kaw)	≤30ms
Tseg sijhawm (N/O neeg qhib)	≤20ms
Max tus Disconnecting lub sij hawm uas muaj mob	≤5ms
Rwb thaiv tsev kuj	≥50MΩ
Lub zog dielectric	50Hz / 60Hz 1000VAC / 1min
Tamsis no tshaj	≤7Ie, ≤1s
Chev zog noj (W)	AZJ200S: ≤9.5W
Chev zog noj (W)	AZJ200D: Start≤250W, Hold≤5.0W
Lub neej hluav taws xob	lub sij hawm 20,000
Txhua yam lub neej	300 phav npaug
Ua hauj lwm hom	Nruam
Hu rau daim ntawv	1 TSIS
Hu rau khoom	AgCdO / AgCuO
Hu rau ntu nyob Load (yeem yam)	2A/48VDC, 5A/24VDC
Txuj kev	GB14048.4-2010

CHAW PAB

Altitude	≤2Km	Kub Ambient	-25~+55℃
Qib thoob ntiaj teb kev tiv thaiv	IP50	Hom plahaum	III
Nruab ib txoj kev	Yam	Kev co	2.5g (5 ~ 50) Hz
Tej yam	50g, 11ms (Half-Sine yoj)

DAIM DUAB SCHEMATIC



DAIM DUAB PLAHAUM



Khoom Diam duab yeeb yam

Kub muag khoom


Ntim andamp; Shipping



Tuam txhab ntxiv




Yam khoom tshiab


Aokai fais yog koj qhov chaw zoo rau tus zoo siab 24vdc 200a contactor sib nqus solenoid relay uas CE muab ntawv pov thawj. Peb tau muaj ib yam ntawm cov coob xws manufacturers thiab lwm tus neeg nyob hauv Suav teb vim hais tias peb lub tsev lag luam rau xyoo 2008. Txais tos hu peb koom xwm rau cov khoom siv.

Cim npe nrov: 24vdc 200a contactor sib nqus solenoid relay, suav, lwm tus neeg, lub hoobkas, CE manufacturers
